What is the Beaconic Smart+ and which laboratories is it best suited for?

The Beaconic Smart+ is the most powerful and compact semi automatic biochemistry analyzer in its class, manufactured by Beacon Diagnostics Pvt. Ltd. It is custom designed for clinical chemistry, turbidimetry, and coagulation assays in a single compact unit. Its space-saving design makes it ideal for small to mid-sized laboratories, clinics, nursing homes, and diagnostic centers that face space constraints but still require high-performance biochemistry testing capabilities.

What makes the Beaconic Smart+ a 3-in-1 analyzer?

The Beaconic Smart+ is a 3-in-1 system that combines Clinical Chemistry, Turbidimetry, and Coagulation assay testing in a single compact analyzer. This multi-functionality eliminates the need to invest in separate analyzers for different test types, making it a highly cost-effective solution for laboratories that require a broad range of diagnostic capabilities without occupying additional bench space.

How many test programs and results can the Beaconic Smart+ store?

The Beaconic Smart+ supports up to 300 open test programs, giving laboratories the flexibility to configure a wide range of biochemistry assays as per their clinical needs. It also has a result storage capacity of 20,000 results, allowing labs to retrieve and review historical patient data easily without the need for external record keeping systems.

What is the warm-up time and minimum aspiration volume of the Beaconic Smart+?

The Beaconic Smart+ has a very fast warm-up time of just 90 seconds, making it ready for use almost immediately after switching on. This reduces waiting time and improves lab workflow efficiency. The minimum aspiration volume is 300 µl, which is well-suited for routine biochemistry tests while ensuring accurate and reproducible results across all supported assay types.

What optical system does the Beaconic Smart+ use for accurate measurements?

The Beaconic Smart+ uses a 32 µl Quartz window flow cell combined with a 6V/10W long life Tungsten Halogen lamp for stable and accurate photometric readings. It is equipped with 6 short half bandwidth interference filters plus 2 optional filter positions, offering flexibility across a wide range of wavelengths. The absorbance linearity extends up to 3.00 Abs, ensuring reliable results across varying sample concentrations.

Does the Beaconic Smart+ support real-time reaction monitoring?

Yes, the Beaconic Smart+ offers a real-time reaction monitoring facility, which allows laboratory technicians to observe the progress of a reaction as it happens. This is particularly useful for kinetic assays and enzyme measurements where monitoring reaction curves ensures greater accuracy and helps detect any sample or reagent anomalies before the result is finalized.

What is the built-in dry block incubator in the Beaconic Smart+ used for?

The Beaconic Smart+ features a built-in dry block incubator with separate dedicated positions for coagulation cuvettes and routine test tubes. This incubator maintains the precise temperature required for enzymatic and coagulation reactions, eliminating the need for a separate external incubation device and improving testing accuracy, especially for temperature-sensitive assays like coagulation tests and enzyme activity measurements.

What is the dual cuvette mode in the Beaconic Smart+?

The dual cuvette mode in the Beaconic Smart+ allows the analyzer to work with two cuvettes simultaneously, enabling the measurement of a sample and a blank or reference at the same time. This feature improves accuracy by compensating for any background interference from the reagent or cuvette, resulting in more precise and reliable test results for clinical biochemistry assays.

What is the difference between the Beaconic Smart+ and the Beaconic B200 or B400?

The Beaconic Smart+ is a semi automatic biochemistry analyzer best suited for smaller labs, clinics, and setups with limited space or lower daily sample volumes. It requires manual sample and reagent loading but offers the unique advantage of coagulation and turbidimetry testing in addition to clinical chemistry. The Beaconic B200 and B400 are fully automatic analyzers designed for mid to high-volume labs with throughputs of 200 and 400 tests per hour respectively, offering automated sample and reagent handling with minimal manual intervention.

Are dedicated reagents available for the Beaconic Smart+ analyzer?

Yes, Beacon Diagnostics provides dedicated system pack reagents specifically designed and validated for use with the Beaconic Smart+ analyzer. These ready-to-use stable liquid reagents ensure optimal performance, accuracy, and traceability for all supported test parameters. Using manufacturer-validated reagents also simplifies consumable procurement and helps maintain consistent quality standards in the laboratory.

Beaconic SMART+ - Semi Automatic Biochemistry Analyzer

Name: Beaconic SMART+
Brand: Beacon Diagnostics

beaconic smart plus semi automated bio chemistry analyzer

BEACONIC B400 Reagents (1)

BEACONIC B200 Reagents (1)

BEACONIC SMART+ Reagents (1)

BEACONIC 5R AUTOLOADER Reagents (4)

BEACONIC 5 PART+ Reagents (5)

BEACONIC 3 PART+ Reagents (3)

BEACONIC LYTE+ Reagents (1)

BEACONIC URILYZER+ Reagents (2)

BEACONIC ESR20 Reagents (1)

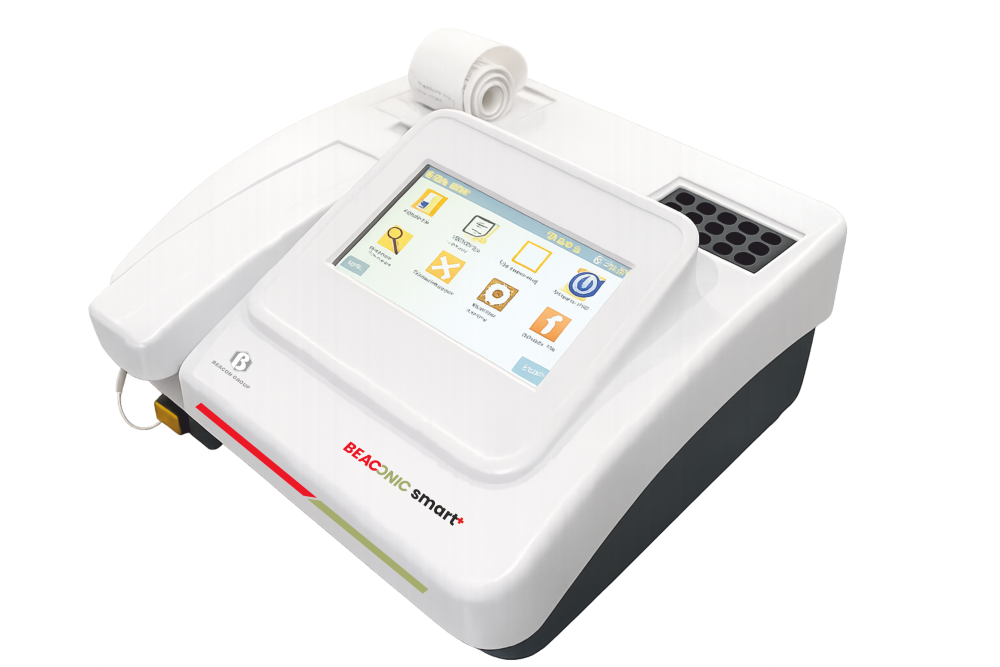

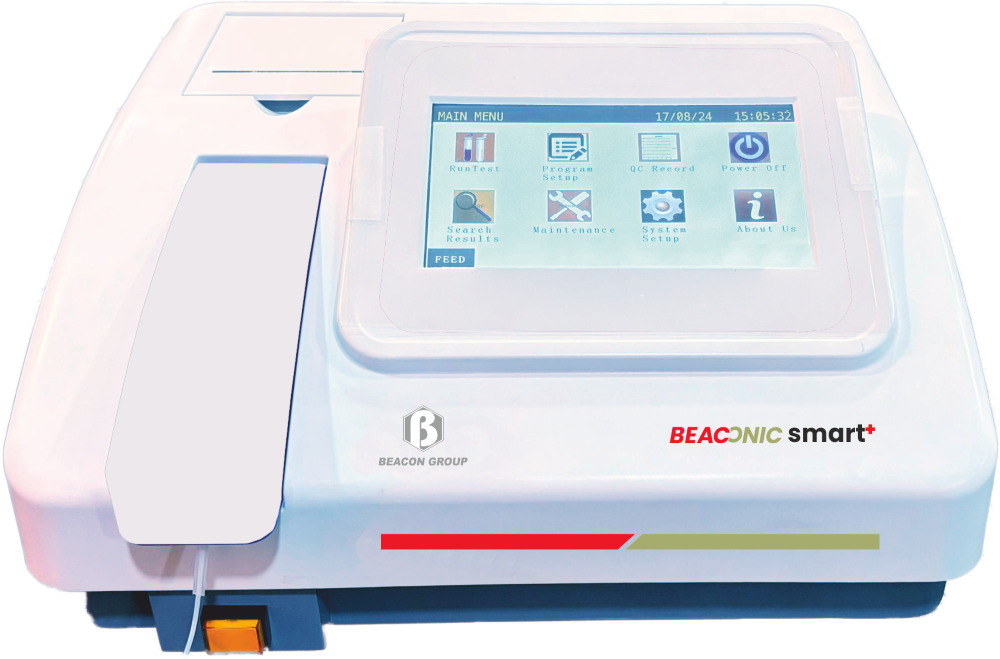

BEACONIC SMART+

Overview
The Beaconic Smart+ is a compact, semi-automatic biochemistry analyzer manufactured by Beacon Diagnostics Pvt. Ltd. It combines clinical chemistry, turbidimetry and coagulation testing in one 3-in-1 unit, with up to 120 open test programs and storage for 25,000 results. A 90-second warm-up and a built-in dry block incubator keep workflow fast, and its small size suits clinics, nursing homes and small laboratories with limited bench space.

Download Brochure

9 Assay Modes Including Coagulation
7 Calibration Types
7 Filters and 1 Free Position
7 Inch Color Touch Screen
In-built Thermal Printer
15 Inbuilt incubation position

Assay Modes : 9 Modes: End Point, Rate, Fixed Time, Two Point Non-Linear, Sample Blank, Multi-Standard, Sample Blank Non- Linear, Coagulation, Absorbance
Programmable Tests : 120
Wavelengths (Filter wheel) : 7 Filters: 340, 405, 505, 546, 578, 620, 670 nm
1 Free position
Flowcell : Quartz Flowcell
Flowcell Volume : 32 µl
Display : 7 Inch colour Touch screen
Printer : In built Thermal Printer
Storage : 25000 Results
Aspiration Volume : 200 - 1500 µl
Operating Voltage : 220 - 240 V, 60Hz, Online UPS 0.5 - 1.0 KVA
Operating Temperature : 10 to 35°C
Operating Humidity : <=80% RH
